The valveless structure reduces pressure loss and allows even highly viscous fluids to flow smoothly.
This coupling is especially suitable for water piping and medium and low pressure piping.

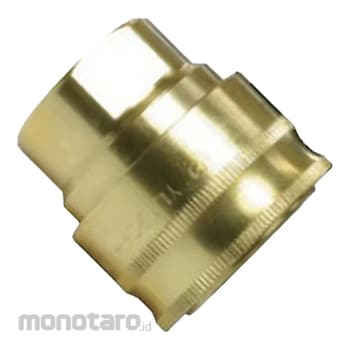

YOKOHAMA Coupler YL190F
#Grup produk P109147091
Spesifikasi
| Thread Standard | (Rc)1” |
|---|---|
| Maximum Working Pressure (MPa) | 1.5 |
| Dimension L1 (inch) | 57 |
| Dimension W1 (mm) | 44 (Octagonal) |
| Dimensions d (mm) | Φ28 |
| Dimensions d1 (mm) | 57 phi |
| Material (Seal) | NBR |
| Material (main body) | Brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Do not attach or detach the S coupling while pressurizing.*Do not use at pressures exceeding the maximum working pressure.
*There is a risk of damage if you apply artificial shock, bending, or tension, such as by hitting it with a hammer.
*Do not weld to panels or hose fittings.
*Please do not use it in a way that causes it to rotate.
*Do not use outside the operating temperature range.
*Please pass the fluid through a filter.
*Foreign objects may prevent the valve from opening and closing.
*If dirt or debris adheres to the seal surface, carefully remove it with something soft such as cloth.
*Cannot be used for nuclear power-related equipment, its facilities, and peripheral equipment. We cannot be held responsible for any troubles that may occur when using this product.
Use
For water piping, general hydraulic oil piping, hydraulic piping, high pressure pipingUlasan Produk
