Accessories
AC adapter

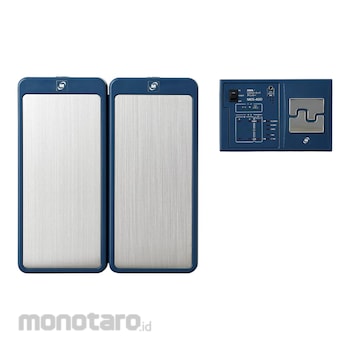

MIDORI ANZEN Electrostatic Shoe/Wrist Strap Checker
#Grup produk P109147037
Spesifikasi
| Power Supply (V) | AC Adapter (DC6V) |
|---|---|
| Communication | USB B type |
| Temperature and Humidity Range (°C) | 0 to 40 90%RH |
| Maximum Measurement Current (at short circuit) (μA) | 25 or less |
| Measurement Voltage (V) | (Shoes) DC24, (Wrist Strap) DC10 |
| Dimension WxDxH (mm) | 200x40x130 |
| Judgment Level Accuracy | Less Than 100MΩ ±10%/100MΩ or More ±20% |
| Measurement Mode | (All Modes) Left Shoe → Right Shoe → Wrist Strap, (Shoe Mode) Left Shoe → Right Shoe, (Wrist Strap Mode) Wrist Strap Only |
| Measurement Time (s) | 3 |
| Shoe Check Function | Judgment setting value can be changed for both upper and lower limits (upper limit: 10MΩ, 100MΩ, 1000MΩ) (lower limit: 0.1MΩ, 1MΩ) Width (mm): 200 |
| Shoe Side Electrode Part Width (mm) | 160 |
| TRUSCO Number | 208-5218 |
| Wrist Strap Check Function | Upper Limit: 10MΩ Lower Limit: 0.75MΩ |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
It is not explosion-proof.Feature
- A function has been added to save personal data and measurement data on a Windows PC using dedicated software.- Electrostatic shoes can be checked individually on the left and right sides.
- You can select the upper and lower limits of the judgment level.
- In addition to entering personal data such as worker name and department name using a keyboard, it is also possible to enter personal data using a QR code using a commercially available barcode reader.
- By outputting OK/NG judgment results externally and interlocking with equipment, it is possible to unlock electronic locks in air shower rooms and activate buzzers in explosion-proof facilities.
- Electrostatic shoes and wrist straps can be checked simultaneously or individually depending on the mode setting.
- If no measurements are taken for a certain period of time, it will automatically enter sleep mode.
Use
- For checking the electrical resistance value of electrostatic shoes and wrist wraps.- For evaluating the performance of electrostatic shoes and wrist straps.
