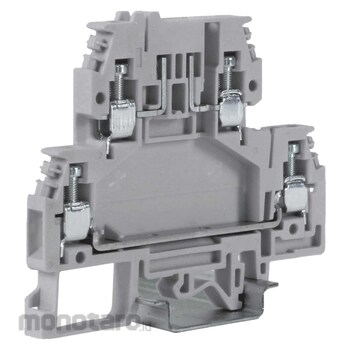

Screw terminal block 2 levels fuse-holder, 4 mm², grey
- Suitagle for "blade" fuses (DIN 72581/3F - ISO 8820) or 5x20 mm with CPF05 accessory
- The blade fuse can be replaced by 5x20 mm fuses or electronic components, thanks to the accessory CPF05 (for details see the accessories chapter)
- Fuse and cartdridge accessory, are available separately
Cabur Two Level Fuse Holder Terminal Block
#Grup produk P109132211
Spesifikasi
| Colour | Grey |
|---|---|
| Function/Type | 2 Levels (Fuse-holder + feed-through) |
| Rated Cross Section (mm²) | 4 |
| Maximum Voltage AC/DC (IEC EN Standard) (V) | 400 |
| Maximum Current (rated cross-section) (IEC EN Standard) (A) | 10 (1) / 32 |
| Caliber | A4 |
| Insulation Material Temperature Index (EN 60216-1) (°C) | 130 |
| Insulation stripping length (mm) | 9 |
| Length (mm) | 78 |
| Maximum Current (Rated Cross-Section) (UL Standard) (A) | 6.3-30 |
| Maximum Voltage AC/DC (UL Standard) (V) | 300 |
| Plastic Material | Polyamide UL94V-0 |
| Section (Min-Max) (AWG) | 26-10 AWG |
| TH35 Snap-Fit Type | BTO (cod. BT007) |
| TH35 and G32 Snap-Fit Type | BTU (cod. BT005) |
| Thickness (mm) | 1.5 |
| Tightening Torque Value (N m) | 0.5 (max.1.2) |
| Tightening Torque Value UL (lbs-inch) | 4.4 |
| Width (pitch) (mm) | 6 |
