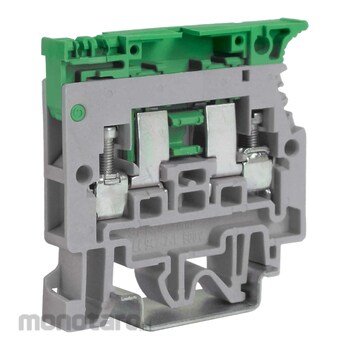

Screw terminal block 1 level fuse-holder, 4 mm², grey
- Suitable for 5x20 mm fuses
- Accessory with alarm LED, available separately
- Can be use as disconnector, using the accessory, to be inserted in place of the fuse
Cabur Fuse Holder Terminal Block
#Grup produk P109132132
Spesifikasi
| Colour | Grey |
|---|---|
| Function/Type | Fuse-holder 5x20 |
| Rated Cross Section (mm²) | 4 |
| Maximum Voltage AC/DC (IEC EN Standard) (V) | 800 |
| Maximum Current (rated cross-section) (IEC EN Standard) (A) | 6.3 (20 con CO/5) (1) |
| Caliber | A4 |
| Insulation Material Temperature Index (EN 60216-1) (°C) | 130 |
| Insulation stripping length (mm) | 11 |
| Length (mm) | 52 |
| Maximum Current (Rated Cross-Section) (UL Standard) (A) | 6.3 |
| Maximum Voltage AC/DC (UL Standard) (V) | 600 |
| Plastic Material | Polyamide UL94V-0 |
| Section (Min-Max) (AWG) | 20-12 AWG |
| TH35 Snap-Fit Type | BTO (cod. BT007) |
| TH35 and G32 Snap-Fit Type | BTU (cod. BT005) |
| Thickness (mm) | 1.5 |
| Tightening Torque Value (N m) | 0.5 (max.1.2) |
| Tightening Torque Value UL (lbs-inch) | 4.4 |
| Width (pitch) (mm) | 8 |
