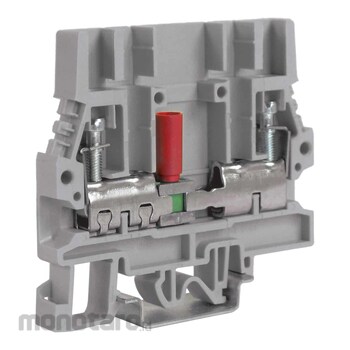

Screw terminal block for test and measuring circuits, 6 mm², grey
- DD version suitable for voltmetric circuits (with sockets upstream and downstream of the slide link)
- CD version suitable for amperometric circuits (with sockets upstream and downstream of the slide link and sleeve for short circuit upstream of the slide link)
Cabur Disconnect by Slide -Link Terminal Block
#Grup produk P109131957
Spesifikasi
| Colour | Grey |
|---|---|
| Function/Type | Disconnector |
| Rated Cross Section (mm²) | 6 |
| Maximum Voltage AC/DC (IEC EN Standard) (V) | 800 |
| Maximum Current (rated cross-section) (IEC EN Standard) (A) | 41 |
| Caliber | A5 |
| Insulation Material Temperature Index (EN 60216-1) (°C) | 130 |
| Insulation stripping length (mm) | 12 |
| Length (mm) | 69 |
| Maximum Current (Rated Cross-Section) (UL Standard) (A) | 47 |
| Maximum Voltage AC/DC (UL Standard) (V) | 600 |
| Plastic Material | Polyamide UL94V-0 |
| Section (Min-Max) (AWG) | 20-8 AWG |
| TH35 Snap-Fit Type | BTO (cod. BT007) |
| TH35 and G32 Snap-Fit Type | BTU (cod. BT005) |
| Thickness (mm) | 1.5 |
| Tightening Torque Value (N m) | 0.8 (max.1.4) |
| Tightening Torque Value UL (lbs-inch) | 13.3 |
| Width (pitch) (mm) | 8 |
