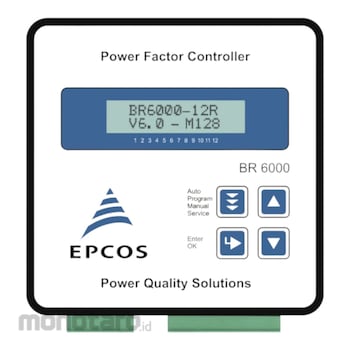

EPCOS Power Factor Controller

Image on this page only as Representative Image, Please check the specifications of each size and color for details

Display
- Large and multifunctional LCD (2 × 16 characters)
- Graphic and alphanumeric
- LCD illumination
- OLED display available for series BR6000-HD

Housing
- Zinc coated sheet steel

System parameters displayed
- System voltage (V AC)
- Reactive power (kvar)
- Active power (kW)
- Frequency
- Apparent power (kVA)
- Apparent current (A)
- Temperature (°C)
- Real-time cos δ
- Target cos δ
- kvar value to target cos δ
- Harmonics (3rd … 19th) V (%), I (%)
- Energy (kvar)

Alarm output
- Insufficient compensation
- Overcompensation
- Undercurrent
- Overcurrent
- Overtemperature
- Harmonics
- Threshold value programmable
- Internal error storage

Recall recorded values
- Maximum voltage (Vmax)
- Minimum voltage
- Maximum reactive power, Q (kvar)
- Maximum active power, P (kW)
- Maximum apparent power, S (kVA)
- Maximum temperature (°C)
- Maximum THD-V/THD-I
- Switching cycles of capacitors
- Operation time of capacitors
