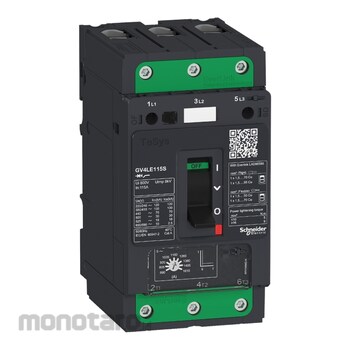

Schneider Electric Motor Circuit Breaker GV4 Series
#Grup produk P109129518
Kondisi Barang:
Authorized Partner
Spesifikasi
| Number of Pole | 3P |
|---|---|
| Rated Current (A) | 115 |
| Motor Power (kW) | 30 to 55 (at 400-415VAC) |
| Breaking Capacity (kA) | 50 (at 400-415VAC) |
| Control Type | Toggle |
| Trip Unit Technology | Magnetic, Electronic |
| Dimension (HxWxD) (mm) | 155x81x116 |
| Magnetic Tripping Current (A) | 480 to 1120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides magnetic protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Magnetic protection adjustable by dial, setting range 6-14 In. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). To be used in association with a class 10 or 20 thermal overload relay to complete motor protection. Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
