Fixed tube plate type makes cleaning the tube side easy. Ideal for use in locations where there is little oil contamination, but cooling water has a lot of contamination, and the tube side is often cleaned.
Compact yet high performance design using manufacturer's Φ9/28 low fin tube.
Three types of models can be selected for each size depending on the oil flow rate.

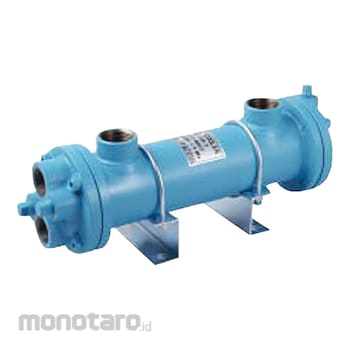

Taisei Kogyo Heat Exchanger
#Grup produk P109127820
Spesifikasi
| Oil Flow Rate | Usually |
|---|---|
| Body Diameter (Φmm) | 76.3(65A) |
| Pipe diameter (Φmm) | Cooling Pipe 9 Low Fin Tube |
| Maximum Working Pressure (MPa) | 1 |
| Material | (Cooling Pipe) C1220T |
| Compatible Fluid | (Shell side) General Hydraulic Oil, (Tube Side) Fresh Water |
| Cooling Area (m²) | 1.1 |
| Scramble | (Shell Side) Rc Screw-in Type, (Tube Side) Rc Screw-in Type |
| Type | Fixed Tube Plate Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
・Original φ9 low fin tube enables high performance and downsizing.・Fixed tube sheet type is the simplest structure and low price.
・Choose from 3 model types for all sizes for large and small oil flow rates.
・High flexbility of installation by selectable flow direction and adjustable U-bolt stand.
Use
General industrial machine and other uses. The oil is not very dirty but the coolant is very dirty, so the oil cooler is best suited in areas where the tube side is often cleaned.Ulasan Produk
