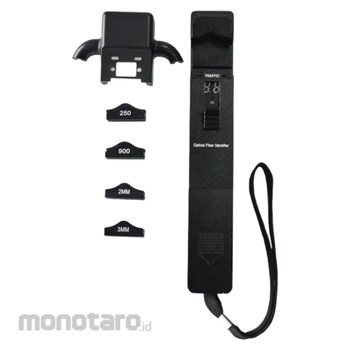

Joinwit Handheld Optical Fiber Identifier
#Grup produk P109120979
Spesifikasi
| Size (cm) | 25.5x8x5.5 |
|---|---|
| Identified Wavelength Range (nm) | 800-1700 |
| Identified Signal Type | CW, 270Hz±5%, 1kHz±5%, 2kHz±5% |
| Detector Type Ø1mm | InGaAs 2pcs |
| Adapter Type (Ø) | 0.25 (Applicable for Bare Fiber), 0.9 (Applicable for 0.9 Cable ), 2.0 (Applicable for 2.0 Cable ), 3.0 (Applicable for 3.0 Cable ) |
| Signal Direction | Left & Right LED |
| Alkaline Battery (V) | 9 |
| Frequency Test Range (dBm, Average Value) | 0.9, 2.0, 3.0, -30 to 0 (270Hz,1KHz), -25 to 0 (2KHz). 0.25, -25 to 0 (270Hz,1KHz), -20 to 0 (2KHz) |
| Insertion Loss (dB, Typical Value) | 0.8 (1310nm), 2.5 (1550nm) |
| Operating Temperature (°C) | -10 to +60 |
| Signal Frequency Display (Hz) | 270, 1K, 2K |
| Signal Power Test Range (dBm, CW/0.9mm Bare Fiber) | -50 to +10 |
| Singe Direction Test Range (dBm, CW/0.9mm Bare Fiber) | -46 to 10 (1310nm), -50 to 10 (1550nm) |
| Storage Temperature (°C) | -25 to +70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Easy-to-use with “ONE KEY” operation.- Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
- Displays the relative core power
- More accurate test with Sunshade
- Easy-to-replace adaptors
- Durable metal housing and quality construction
- Lower power indication
