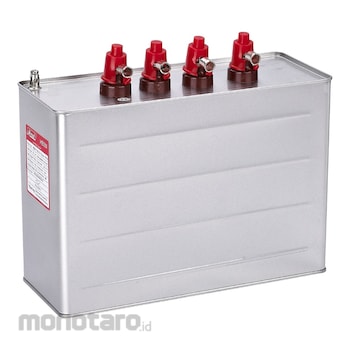

Himel Capacitor
#Grup produk P109104713
Spesifikasi
| Type of Installation | Indoor Installation |
|---|---|
| Capacitance Tolerance (%) | 0 to 10 |
| Dielectric Material | Metallized PP film |
| Impregnation Material | Paraffin Wax |
| Maximum Permissible Voltage | 1.1 x Un (8 hours over 24 hours) |
| Ambient Air Temperature for Operation (°C) | -25 to 50 |
| Operating Altitude (m) | 2000 |
| Rated Short-duration Power Frequency withstand Voltage | 2.15 x Un for 10 s at inter-electrode, 3 kV for 10 s between shell and phase |
| Relative Humidity (%RH) | 0 to 50 at 40 °C, 0 to 90 at 20 °C |
| [Imp] Maximum Permanent Current | 1.43 x In |
| [Ures] Residual Voltage (V) | 50 after 3 min in case of power failure conforming to IEC 60831 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
The product images shown are for illustration purpose only and may not be an exact representation of the product.Ulasan Produk
