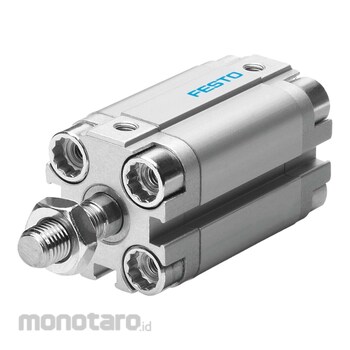

FESTO Compact Cylinder
#Grup produk P109101053
Spesifikasi
| Stroke (mm) | 5 |
|---|---|
| Piston Diameter (mm) | 20 |
| Cushioning | Elastic cushioning rings/plates at both ends |
| Mounting Position | optional |
| Mode of Operation | Double-acting |
| Piston rod end | Male thread |
| Ambient Temperature (°C) | -20 s/d 80 |
| Cover Material | Wrought aluminium alloy |
| Design | Piston, Piston rod |
| Impact Energy In End Positions (J) | 0.14 |
| Material Collar Screws | Galvanised steel |
| Material Dynamic Seals | NBR TPE-U(PU) |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Operating Pressure (MPa) | 0.1 - 1 |
| Operating Pressure (bar) | 1 - 10 |
| Operating Pressure (psi) | 14.5 - 145 |
| Pneumatic Connection | M5 |
| Position Detection | Via proximity switch |
| Symbol | 991217 |
| Variants | Piston rod at one end |
