Dimension :
C (mm) : 175
D (mm) : 210
D1 (mm) : 250
H (mm) : 377
L (mm) : 292
d (Φmm) : 100
h (mm) : 19
l (mm) : 38.5
t (mm) : 18
Nominal diameter (A) : 100
Nominal diameter (B) : Four
Kitz 10K Ductile Iron Globe Valve (External Thread/Flange Type) (10SPBOF Series)
#Grup produk P109095141
Spesifikasi
| Thread Diameter | M16 |
|---|---|
| Connection Method | Pipe Flange |
| Fluid Used | Water, Oil, Air, Steam, Gas |
| Valve Type | Globe Valve |
| Maximum Working Pressure (MPa) | 1.37 (-10 to 120℃ Static Water), 1.18 (-10 to 120℃ Steam/Air/Gas/Oil/Pulsating Water), 0.98 (300℃ Steam/Air/Gas/Oil/Pulsating Water) |
| Class | 10K |
| Handle Shape | Circular |
| M Code | 37690387 |
| Material (Gasket) | Non-asbestos Sheet |
| Material (Handle) | FCD400-15 |
| Material (Packing) | Non-asbestos |
| Material (bonnet) | FCD-S |
| Material (disk) | FCD-S |
| Material (main body) | FCD-S |
| Material (stem) | SUS403 |
| Number of bolt holes | 8 |
| Operating Temperature Range (°C) | -10~120, 300 |
| Shape | Straight |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning

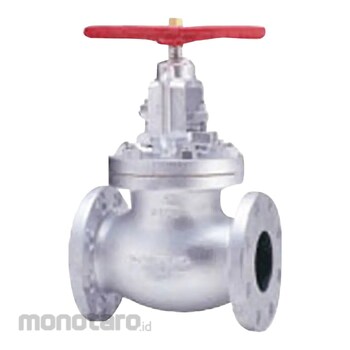

*Sample image (Please check the specifications of each product number for details)Ulasan Produk
