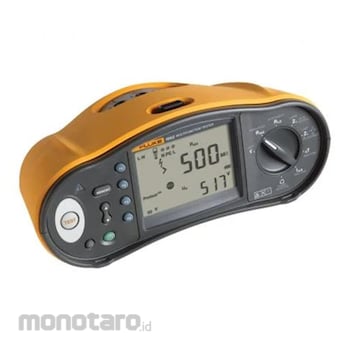

Fluke 1662 Multifunction Installation Tester delivers solid, basic installation testing features
The Fluke 1662 installation tester gives you Fluke reliability and all the basic testing power you need for day-in, day-out installation testing. It tests to all local regulations and is easy and intuitive to use. Additional helpful features like the On/Off switchable auto-start for RCD and loop test, and self-test save time and give you more confidence in your results.
- Measures RCD switching time and tripping level (ramp test)
- Measures trip time and current for RCD type A & AC in one test
- Measures RCD variable current
- Provides automatic RCD test sequence
- Includes Z-max memory for loop tests to support easy evaluation of the highest loop test value
- Provides unique zero adapter for fast, reliable and accurate test lead and mains cord compensation
- Includes a phase sequence indicator
- Comes with hard carrying case, padded carrying and waist strap, and remote control probe and lead
FLUKE Multifunction Sensor
#Grup produk P109089928
Spesifikasi
| Battery Type | Type AA, 6 ea. |
|---|---|
| Range (V) | 500 |
| Input Impedance (kΩ) | 360 |
| Overload Protection (V) | 660 rms |
| Open Circuit Voltage (V) | >4 |
| Test Voltage (V) | 100, 250, 500, 1000 |
| Current Settings | 10-30-100-300-500-1000 mA-VAR; 10-30-100 mA |
| Dimensions (mm) | 100x250x125 |
| Dwell Time (ms/step) | Type G : 300; Type S : 500 |
| Insulation Resistance Range (MΩ) | 20 / 50, 20 / 100, 20 / 200, 20 / 200 / 500, 20 / 200 / 1000 |
| Measurement Accuracy | ±5% |
| Measurement Range (ms) | RCD Type G : 310, 50; RCD Type S : 510, 160 |
| Multiplier | x 1/2,x1,x5 |
| Overvoltage | CAT III / 500V; CAT IV 300V |
| RCD Type | A : Responds to pulsed signal, AC : Responds to AC, G : General, no delay, S : Time delay |
| Range (A) | 1000 / 10000 (50kA) |
| Range (ohm) | 10 / 0.001 / High current mΩ mode |
| Sealing | IP-40 |
| Test Current (mA) | 1 @ 50 kΩ, 1 @ 100 kΩ, 1 @ 250 kΩ, 1 @ 500 kΩ, 1 @ 1 MΩ |
