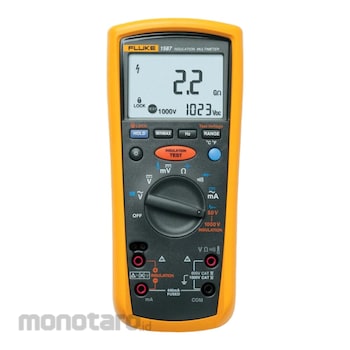

The Fluke 1577 and 1587 Insulation Multimeters combine a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Like other tools that you have come to expect from Fluke, the 1577 and 1587 are rugged, reliable, and easy to use. Whether you work on motors, generators, cables, or switch-gear, the Fluke 1577/1587 Insulation Multimeters are ideally suited to help you with your tasks.
Rely on Fluke for innovations that generate new demand
Two powerful tools in one.
The Fluke 1587 and 1587 Insulation Multimeters combine a digital insulation tester with a full-featured, true-rms digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance.
Like other tools that you have come to expect from Fluke, the 1587 and 1587 are rugged, reliable, and easy to use.
Whether you work on motors, generators, cables, or switch-gear, the Fluke 1587/1587 Insulation Multimeters are ideally suited to help you with your tasks.
FLUKE Insulation Tester (Pengukur Isolasi)
#Grup produk P109089803
Spesifikasi
| Product Dimensions (inch) | 1.97x8.00x3.94 |
|---|---|
| Battery Type | AA Battery Type 4x AA Batteries |
| Basic Accuracy VDC | ±(0.09%+2) |
| Counts | 6000. |
| CAT Rating | IV |
| CAT Voltage (V) | 1000, 600 CAT Voltage CAT III 1000V and CAT IV 600V |
| Digit Display | 3.75 |
| Display (Megohmmeter) | Digital |
| IR Test Voltage (V) | 100, 50 |
| Live Circuit Voltage Detection | Yes Live Circuit Voltage Detection Live circuit detection prevents insulation test if voltage > 30V is detected for added user protection |
| Manual/Autoranging | Both |
| Maximum Current AC (mA) | 400 (0.4 A) |
| Maximum Current DC (mA) | 400 (0.4 A) |
| Maximum Insulation Resistance (MΩ) | 100 (0.1GΩ) |
| Power Supply | Battery |
| Style | Hand-Held |
| Type | Battery |
| Voltage (V) | Max. 1000 (AC); Max. 1000 (DC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Insulation test voltages (50 V and 100 V only) for telecom applications- Insulation test (0.1 MΩ to 100 MΩ)
- Rugged, utility hard case allows you to bring everything you need for the job
- AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
- Large display with backlight
- Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
- Auto-discharge of capacitive voltage for added user protection
- Auto power off to save battery power
- CAT III 1000 V, CAT IV 600 V measurement category
- Included accessories: Remote probe, test leads and probes
Use
Field service electricians, maintenance electricians and technicians, plant and process electricians – for daily troubleshooting and maintenance of motors, generators, cables, or switchgear.Ulasan Produk
