SKF TN9/C3 Type Self-Aligning Ball Bearings
#Grup produk P109089159
Spesifikasi
| Coating | Without |
|---|---|
| Number of Rows | 2 |
| Width B (mm) | 6 |
| Outside Diameter D (mm) | 19 |
| Bore Type | Cylindrical |
| Basic Dynamic Load Rating C (kN) | 2.47 |
| Basic Static Load Rating C0 (kN) | 0.48 |
| Bearing Material | Bearing steel |
| Bore Diameter d (mm) | 6 |
| Cage | Non-metallic |
| Limiting Speed (rpm) | 45000 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Radial Internal Clearance | C3 |
| Reference Speed (rpm) | 70000 |
| Relubrication Feature | Without |
| Retaining Feature, Inner Ring | None |
| Sealing | Without |
| Tolerance Class | Normal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

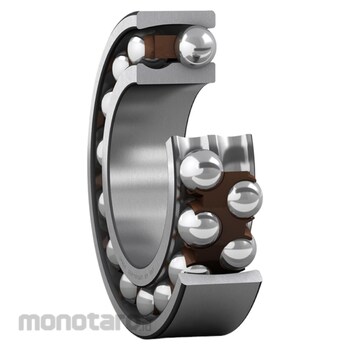

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
Warning
Image may differ from product. See the technical specification for details.Feature
- Accommodate static and dynamic misalignment- Excellent high-speed performance
- Excellent light load performance
- Low friction
