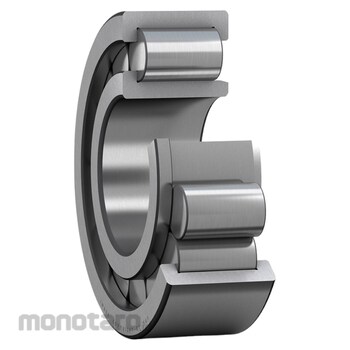

SKF NJ EV/C3 Type Cylindrical Roller Bearings
#Grup produk P109089113
Spesifikasi
| Locating Feature, Bearing Outer Ring | None |
|---|---|
| Radial Internal Clearance | C3 |
| Outside Diameter D (mm) | 42 |
| Axial Displacement Capability | In one direction |
| Basic Dynamic Load Rating C (kN) | 25.5 |
| Basic Static Load Rating C0 (kN) | 25.5 |
| Bearing Part | Complete bearing |
| Bore Diameter d (mm) | 20 |
| Bore Type | Cylindrical |
| Cage | Without |
| Coating | Without |
| Limiting Speed (rpm) | 20000 |
| Loose Flange | None |
| Lubricant | None |
| Number of Flanges, Inner Ring | 1 |
| Number of Flanges, Outer Ring | 2 |
| Number of Rows | 1 |
| Reference Speed (rpm) | 17000 |
| Relubrication Feature | Without |
| Sealing | Without |
| Width B (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Warning
Image may differ from product. See the technical specification for details.Feature
- High radial load carrying capacity- Low friction
- Long service life
- Locate the shaft axially in one direction
- Separable design
