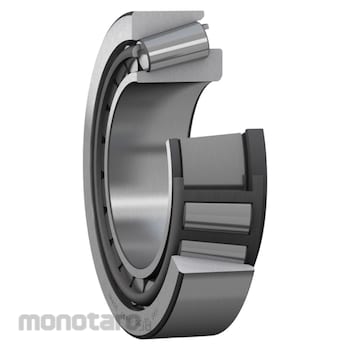

SKF J1/QCL7A Type Single Row Tapered Roller Bearings
#Grup produk P109089052
Spesifikasi
| Basic Static Load Rating C0 (kN) | 265 |
|---|---|
| Sealing | Without |
| Bore Diameter d (mm) | 80 |
| Width of Outer Ring C (mm) | 27 |
| Arrangement of Contact Angle (double-row bearing) | Not applicable |
| Basic Dynamic Load Rating C (kN) | 224 |
| Bearing Part | Complete bearing |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Coating | Without |
| Contact Angle (°) | 28.811 |
| Limiting Speed (rpm) | 4000 |
| Locating Feature, Bearing Outer Ring | None |
| Lubricant | None |
| Matched Arrangement | No |
| Number of Rows | 1 |
| Outside Diameter D (mm) | 170 |
| Reference Speed (rpm) | 2800 |
| Relubrication Feature | Without |
| Total Width T (mm) | 42.5 |
| Width of Inner Ring B (mm) | 39 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
Warning
Image may differ from product. See the technical specification for details.Feature
- High radial and axial load carrying capacity- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
