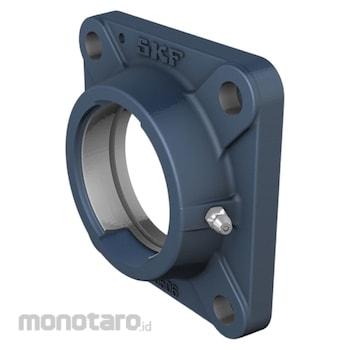

SKF FYJ Type Square Flanged Housing
#Grup produk P109088992
Spesifikasi
| Coating | Without |
|---|---|
| Overall Length L (mm) | 208 |
| Housing Type | Flanged |
| Material, Housing | Cast iron |
| Grease Fitting | With |
| Axial Offset of Dowel Pins J7 (mm) | 51.5 |
| Axial Position of Spherical Seat (from support surface) (mm) | 34 |
| Axial Position of the Housing Thread R1 (mm) | 34.5 |
| Base External Diameter Db2 (mm) | 171 |
| Centre Distance Between Bolt Holes (mm) | 165 |
| Centring Diameter Dc (mm) | 179.4 |
| Depth of Centring Recess A3 (mm) | 3.2 |
| Diameter of Attachment Bolt Hole N (mm) | 23 |
| Diameter of Head Sphere of Grease Fitting DN (mm) | 6.5 |
| Diameter of Spherical Seat Da (mm) | 140 |
| Distance Between Attachment Bolts J (mm) | 165 |
| Distance of Dowel Pins J6 (mm) | 184 |
| Fastening Bolt Hole Type | Plain |
| Flange Width A1 (mm) | 22 |
| Flanged Housing Type | Square |
| Hexagonal Key Size for the Grease Fitting SWN (mm) | 7 |
| Housing Overall Width (mm) | 54.5 |
| Housing Thread for Grease Fitting RG | 1/4-28 UNF |
| Number of Bolt Holes for Fasteners | 4 |
| Overall Width A (mm) | 54.5 |
| Recommended Diameter for Attachment Bolts (inch) | 0.75 |
| Recommended Diameter for Attachment Bolts (mm) | 20 |
| Recommended Diameter for Dowel Pins N4 (mm) | 4 |
| Relubrication Hole | With |
| Spherical Seating Diameter (mm) | 140 |
| Thread of the Grease Fitting GN | 1/4-28 SAE-LT |
| Top External Diameter Db1 (mm) | 162 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These square flanged housings for insert bearings are complaint with Japanese Industrial Standards (JIS). They are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.
Warning
Image may differ from product. See the technical specification for details.Feature
- Resist high levels of contamination- Accommodate relatively heavy loads
