Good corrosion resistance, transparent body, easy maintenance.
- Material (body) : Transparent PVC
- Material (diaphragm) : EPDM
- Taper : 1/T1/34
- RoHS Directive (compatible with 10 substances)correspondence
Pipe Name 20A(3/4B)

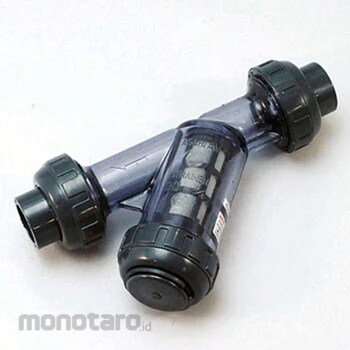

Asahi AV Flexible Strainer (Y Type)
#Grup produk P109074652
Spesifikasi
| Connection | Insert |
|---|---|
| Material | U-PVC |
| Shape | Y Shape |
| Connection Type | Socket Type |
| Dimension D1 (mm) | 60 phi |
| Dimension L (mm) | 210 |
| Dimensions d (mm) | Φ20 |
| Dimensions d1 (mm) | 26.13 phi |
| Dimensions h (mm) | 120 |
| Dimensions h1 (mm) | 98 |
| Dimensions l (mm) | 24 |
| Fluid Temperature (°C) | 0-50 |
| Kinds | Strainer |
| M Code | 5370392 |
| Material (O-ring) | EPDM |
| Maximum Allowable Pressure (MPa) | 1 |
| Maximum Allowable Pressure (kgf/cm²) | 10.2 |
| Mesh | Standard 40 |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Operating Temperature Range (°C) | 0-50 |
