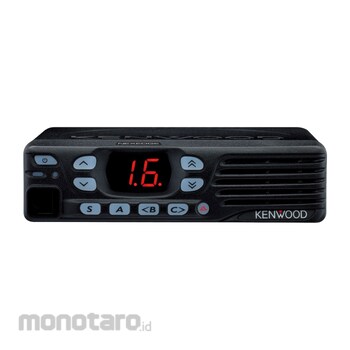

Kenwood Radio
#Grup produk P109060206
Spesifikasi
| Size (mm) | 160x43x122.6 |
|---|---|
| Frequency Range (MHz) | 400-470 |
| Number of Channels | Max. 32 |
| Number of Zones | 2 |
| Max. Channels per Zone | 16 |
| Channel Spacing (kHz) | 12.5 |
| Analog Digital (kHz) | 6.25 |
| Antenna Impedance (ohm) | 50 |
| Frequency Stability (ppm) | ±1.0 |
| Operating Temperature Range (°C) | -30 to +60 |
| Operating Voltage (V) | 13.6 DC ±15% |
| Receiver Intermodulation Distortion (dB) | 65 (Analogue 12.5 kHz) |
| Receiver Selectivity (dB) | 65 (Analogue 12.5 kHz) |
| Receiver Sensitivity (μV) | 0.28 ( Digital 6.25 kHz, Analog 12 dB SINAD) |
| Receiver Spurious Response (dB) | 75 (Analogue 12.5 kHz) |
| Transmitter Audio Distortion (dB) | Less Than 5% |
| Transmitter FM Hum & Noise (dB) | 40 (Analogue) |
| Transmitter Modulation | 11K0F3E, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D |
| Transmitter RF Output Power (W) | 5-45 |
| Transmitter Spurious Response (dB) | 70 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It’s true that analogue radios are still playing a role in mobile communications today. But the future is unquestionably digital, and the new NEXEDGE® NX-740H/840H demonstrates why, offering increased effective coverage area, low noise for superior clarity, and inherently secure voice communications. As you would expect from KENWOOD, intuitive operation, high-powered performance, and round-the-clock reliability come as standard. But there’s more. This mobile radio has a dual personality: it operates in both analog FM and NXDN® digital modes, enabling smooth migration from legacy systems.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
NXDN® DIGITAL AIR INTERFACENEXEDGE® radios employ NXDN®, an FDMA digital air interface with AMBE+2™ voice coding technology, unique filtering and a 4-level FSK modulation technique with low bit error rate (BER) even at weak RF signal strengths.
SWITCHABLE DIGITAL AND ANALOG DUAL MODES
The NX-740/840 Series is effectively two radios in one – analogue and digital – operating on 12.5 kHz in analogue zones, and on 6.25 kHz NXDN® in digital zones.* For convenience, a PF key can be used to switch between zones. *12.5 kHz in digital zones and 25 kHz in analog zones are not covered.
EXTERNAL D-SUB 15-PIN INTERFACE
The radio’s D-Sub 15-pin terminal can be used to connect peripherals, enabling Ignition Sense, External Switch, Horn Alert, etc. Molex interface compatibility is provided by the optional KCT-60 cable.
ENHANCED AUDIO QUALITY
AMBE+2™ VOCODER technology accurately replicates natural human speech nuances for superior voice quality, even in noisy environments. Additionally, the powerful oval speaker delivers up to 4 watt (4Ω impedance) audio output, providing undeniably clearer and crisper audio.
6.25 kHz NXDN® DIGITAL CHANNEL
Digital communications are more spectrumefficient and offer wider area coverage than analogue.
ULTIMATE PERFORMANCE
Maximum RF output power is 50W on the NX-740H VHF model, 45W on the NX-840H UHF model. Additionally, the UHF frequency coverage on the NX-840 Series is 70 MHz.
NXDN® DIGITAL CONVENTIONAL
Compatible with NEXEDGE® Digital Conventional Mode, this radio offers 64 RAN (Radio Access Numbers) and individual & conference group calling to ensure expeditious communications.
32 CHANNELS / 2 ZONES
This radio can be used with two conventional zones, offering up to 16 channels per zone.
GPS FEATURE
Connecting a GPS unit to the NX-740/840 Series enables you to transmit accurate vehicle location (GPS) data to the central base station for fleet management purpose.
OTHER FEATURES
DIGITAL: Over-The-Air-Alias (TX only), Paging Call, Individual Call & Conference Group Call, Status Messaging, Remote Monitor, Site Roaming, Late Entry, NXDN® ESN
ANALOGUE: FleetSync®, MDC-1200, DTMF, QT/DQT/2-tone, Compander, Squelch Level
GENERAL: Multiple Scan, 4-Color LED (Blue/Red/Green/Orange), 9 PF Keys, Voice Announcement (select a language from English, Spanish, or Russian), Emergency Call, Remote Stun/Kill, Lone Worker Alert, Time Out Timer, Busy Channel Lockout, Horn Alert, Ignition Sense, KPG-175D Windows® FPU Wired Cloning, Password Protection, PTT Release Tone, Minimum Volume, Mic Sense, MIL-STD-810 C/D/E/F/G, IP54 Water & Dust Intrusion
