Spesifikasi
Color | Body: White, Release bush: Orange |
---|---|
Material (screw) | Brass |
Applicable Pipe Outer Diameter (inch) | 1/2 |
Assured Pressure Resistance (MPa) | 3 |
Connector Thread | NPT1/4 |
Dimension A (mm) | 44.1 |
Dimension L1 (mm) | 19.4 |
Dimension L2 (mm) | 28.7 |
Dimension d1 (Φmm) | 19.3 |
Dimensions d2 (mm) | 17 phi |
Dimensions m (mm) | 17 |
Effective Section Area (mm²) | (Nylon) 50.3 (Urethane) 44.4 |
Pipe Connection Diameter | 1/4 |
Sealing Type | [Male screw] (-) No sealant |

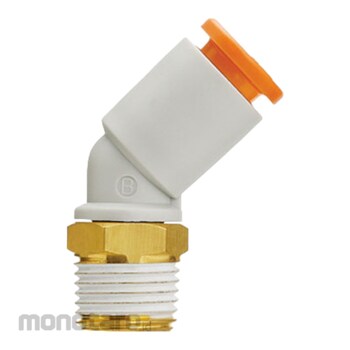

Shape | 45 ° elbow union |
Suitable fluid | Air, water |
Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
Type Of Thread | NPT |
Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Warning
- Dimension A is the reference dimension after screwing in the NPT screw- Dimension φD1 means the maximum diameter.
Use
Used for 45 -degree direction piping from the screw. An intermediate model of Half Union and Elvo Union.Dokumentasi Produk
