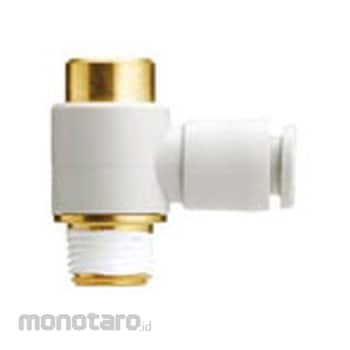

SMC Universal Female Elbow KQ2VF without Sealant Metric Size
#Grup produk P109012333
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Connector Thread | R1/8, Rc1/8 |
| Type Of Thread | RRc |
| Dimension A (mm) | 25.4 |
| Dimension L2 (mm) | 13 |
| Dimension L3 (mm) | 28.5 |
| Dimensions d2 (mm) | 13.4 phi |
| Dimensions m (mm) | 13.3 |
| Pipe Connection Diameter | 1/8 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Universal female elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
