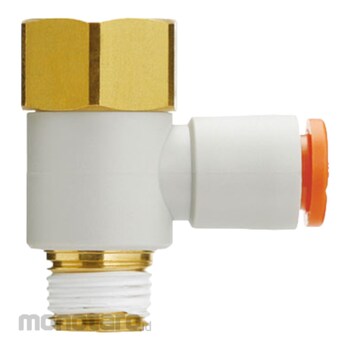

SMC Universal Female Elbow KQ2VF Gasket Seal Inch Size
#Grup produk P109012272
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Applicable Pipe Outer Diameter (inch) | 1/8 |
| Connector Thread | 10-32UNF |
| Effective Section Area (mm²) | (Nylon) 2.2 (Urethane) 1.9 |
| Type Of Thread | UNF |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension A (mm) | 15.9 |
| Dimension L1 (mm) | 17.5 |
| Dimension L2 (mm) | 10.4 |
| Dimension L3 (mm) | 19.4 |
| Dimension d1 (Φmm) | 7.1 |
| Dimensions d2 (mm) | 9.8 phi |
| Dimensions m (mm) | 13.3 |
| Pipe Connection Diameter | No.10-32 |
| Shape | Universal female elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD1 means the maximum diameter.Use
Simple screws and screws, both from either for branching in the same direction and 90 degrees, can be used, and multiple connections are possible.Dokumentasi Produk
