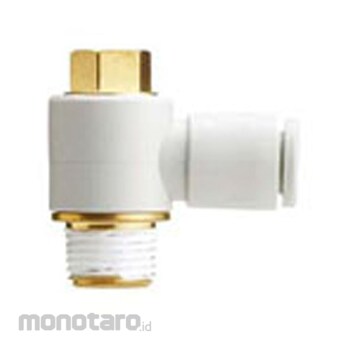

SMC Universal Elbow Union KQ2V without Sealant Metric Size
#Grup produk P109012193
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Material (screw) | Brass |
| Connector Thread | R1/2 |
| Effective Section Area (mm²) | (Nylon) 39 (Urethane) 30.8 |
| Suitable Tube Outer Diameter (Φmm) | 12 |
| Type Of Thread | RRc |
| Dimension A (mm) | 34.4 |
| Dimension L1 (mm) | 28.5 |
| Dimension L2 (mm) | 24.6 |
| Dimension L3 (mm) | 40.8 |
| Dimension d1 (Φmm) | 18.5 |
| Dimensions d2 (mm) | 25.2 phi |
| Dimensions m (mm) | 17 |
| Pipe Connection Diameter | 1/2 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Universal Elbow Union |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details- Dimension φD1 means the maximum diameter.
- Dimension A is the reference dimension after screwing R screw
Use
Elvo union for a narrow space that tightens the hexagonal head of the body with a box wrench.Produk Terpopuler
