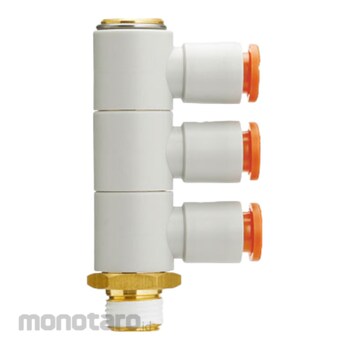

SMC Triple Universal Elbow KQ2VT Gasket Seal Inch Size
#Grup produk P109011635
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Connector Thread | 10-32UNF |
| Effective Section Area (mm²) | (Nylon) 2.3 (Urethane) 2.3 |
| Pipe Connection Diameter | No.10-32 |
| Type Of Thread | UNF |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension A (mm) | 49.5 |
| Dimension L1 (mm) | 20.6 |
| Dimension L2 (mm) | 16.1 |
| Dimension L3 (mm) | 53 |
| Dimension P (mm) | 13.8 |
| Dimension d1 (Φmm) | 11.1 |
| Dimensions d2 (mm) | 13.4 phi |
| Dimensions m (mm) | 13.3 |
| Shape | Triple universal elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD1 means the maximum diameter.Use
The tube mounting direction is free and independent of 3 independent tube mounting directions in the three -branch piping pipe in the right angle direction.Dokumentasi Produk
