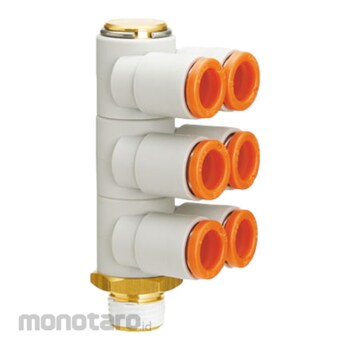

SMC Triple Branch Universal Elbow KQ2ZT without Sealant Inch Size
#Grup produk P109011592
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Connector Thread | NPT3/8 |
| Effective Section Area (mm²) | (Nylon) 43.8 (Urethane) 34.3 |
| Pipe Connection Diameter | 3/8 |
| Type Of Thread | NPT |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension A (mm) | 82.1 |
| Dimension L1 (mm) | 27.9 |
| Dimension L2 (mm) | 29.6 |
| Dimension L3 (mm) | 86.8 |
| Dimension d1 (Φmm) | 19.3 |
| Dimensions d2 (mm) | 27 phi |
| Dimensions m (mm) | 17 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Triple Branch universal elbow |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Dimension A is the reference dimension after screwing in the NPT screw- Dimension φD1 means the maximum diameter.
Use
Used for 6 -branch piping in a right angle direction from the screw. The tube mounting direction is free and 3 independent.Dokumentasi Produk
