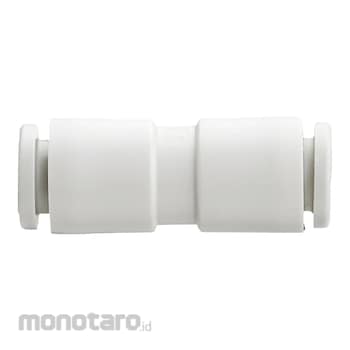

SMC Straight KQ2H Metric Size
#Grup produk P109005810
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 |
| Dimension L (mm) | 24.8 |
| Suitable Tube Outer Diameter (Φmm) | 2 |
| Dimensions d (mm) | Φ5.8 |
| Dimensions m (mm) | 11.9 |
| Effective Section Area (mm²) | (Nylon)- (Urethane) 0.9 |
| Minimum Hole Diameter (mm) | 1.4 |
| Pipe Connection Diameter | Same diameter tube |
| Shape | Union straight |
| Suitable fluid | Air, water |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD means the maximum diameter.
Use
Used for connection between tubes in the same direction.Dokumentasi Produk
