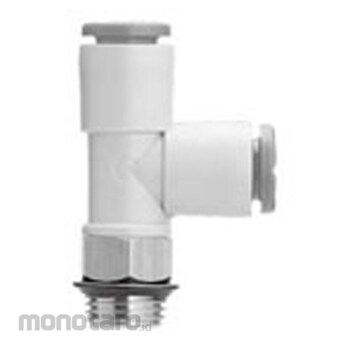

SMC Service Tee Union KQ2Y Gasket Seal Inch Size
#Grup produk P108997675
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Applicable Pipe Outer Diameter (inch) | 1/4 |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | Uni1/4 |
| Dimension A (mm) | 31.3 |
| Dimension L1 (mm) | 16.5 |
| Dimension L2 (mm) | 21.2 |
| Dimension L3 (mm) | 16.5 |
| Dimension d1 (Φmm) | 11.1 |
| Dimensions d2 (mm) | 10 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 11.3 (Urethane) 10 |
| Pipe Connection Diameter | 1/4 |
| Shape | Service tee union |
| Suitable fluid | Air, water |
| Type Of Thread | Uni |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD1 means the maximum diameter.
Use
Used for the same direction from the screw and 90 degree direction piping.Dokumentasi Produk
