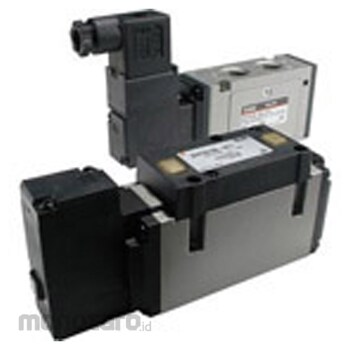

SMC Metal Seal Direct Piping Type/5 Port Pilot Type VFS3211 Series
#Grup produk P108971233
Kondisi Barang:
Authorized Partner
Spesifikasi
| Ambient and Flowing Fluid Temperature (°C) | -10 - 60 |
|---|---|
| Operating Pressure Range (MPa) | 0.1 - 1.0 |
| Rated Voltage (V) | AC100 (50/60Hz) |
| Body Type | Non-plug-in sub-plate |
| Lamp/Surge Voltage Protection Circuit | With lamp / surge voltage protection circuit |
| Manual Operation Type | Non-lock push type (flash type) |
| Number of Ports | 5 |
| Pipe Connection Diameter | No sub-plate |
| Suitable fluid | Air |
| Type Of Thread | Rc |
| Type of Lead Wire Extraction | DIN type terminal |
| Type of Switching | 2 position double |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
The main valve structure is a metal seal.Abundant size variations.
For medium and large cylinder drive.
Abundant manifold options.
Control unit support (VFS2000/3000/4000 base pipe type)
Manifold model: VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5
