SMC Long Street Elbow KQ2W Metric Size
#Grup produk P108965092
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: white, release bush: light gray |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Applicable Fitting d (Φmm) | 4 |
| Assured Pressure Resistance (MPa) | 3 |
| Suitable Tube Outer Diameter (Φmm) | 4 |
| Dimension A (mm) | 22.6 |
| Dimension L1 (mm) | 14.5 |
| Dimension L2 (mm) | 31.8 |
| Dimension d1 (Φmm) | 8.2 |
| Dimensions d2 (mm) | 7.2 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 4.2 (Urethane) 4.2 |
| Minimum Hole Diameter (mm) | 3 |
| Shape | Long Street Elbow |
| Suitable fluid | Air, water |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

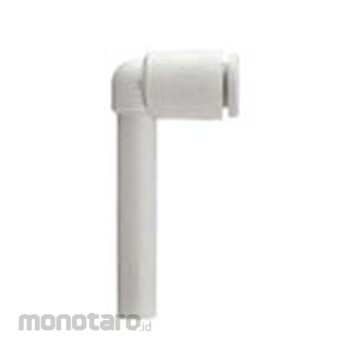

Image on this page only as Representative Image, Please check the specifications of each size and color for details* Dimension φD1 means the maximum diameter.
Use
Used for 90 -degree change in the tube removal direction from one touch tube, uses it at the same time as the street elbow and can be three -dimensional piping.Ulasan Produk
