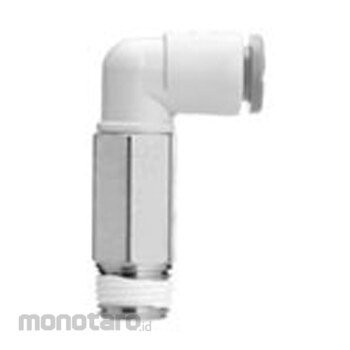

SMC Long Elbow Union KQ2W without Sealant Inch Size
#Grup produk P108965010
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Applicable Pipe Outer Diameter (inch) | 5/16 |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | NPT3/8 |
| Dimension A (mm) | 41.1 |
| Dimension L1 (mm) | 17.2 |
| Dimension L2 (mm) | 39.2 |
| Dimension d1 (Φmm) | 13.2 |
| Dimensions d2 (mm) | 12 phi |
| Dimensions m (mm) | 14.2 |
| Effective Section Area (mm²) | (Nylon) 20.5 (Urethane) 14.2 |
| Pipe Connection Diameter | 3/8 |
| Sealing Type | [Male screw] (-) No sealant |
| Shape | Long elbow union |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | NPT |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for details- Dimension A is the reference dimension after screwing in the NPT screw
- Dimension φD1 means the maximum diameter.
Use
Basically used as Elvo Union. The difference is used when the piping is three -dimensional and the interference of the joint is prevented.Ulasan Produk
