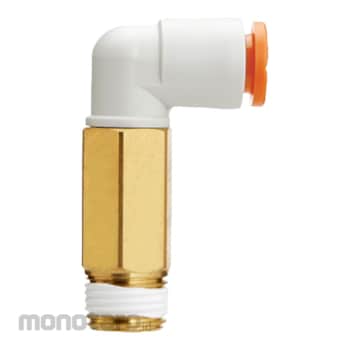

SMC Long Elbow Union KQ2W Gasket Seal Inch Size
#Grup produk P108964932
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Applicable Pipe Outer Diameter (inch) | 1/4 |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | 10-32UNF |
| Dimension A (mm) | 29.7 |
| Dimension L1 (mm) | 15.4 |
| Dimension L2 (mm) | 27.6 |
| Dimension d1 (Φmm) | 11.1 |
| Dimensions d2 (mm) | 7 phi |
| Dimensions m (mm) | 13.3 |
| Effective Section Area (mm²) | (Nylon) 3.5 (Urethane) 3.5 |
| Pipe Connection Diameter | No.10-32 |
| Shape | Long elbow union |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | UNF |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD1 means the maximum diameter.Use
Basically used as Elvo Union. The difference is used when the piping is three -dimensional and the interference of the joint is prevented.Dokumentasi Produk
