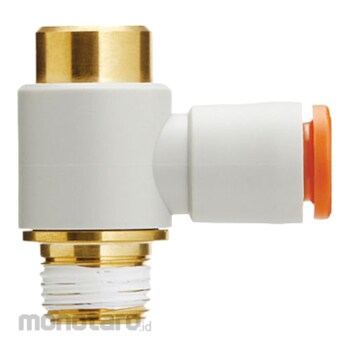

SMC Hex Socket Universal Elbow KQ2VS Gasket Seal Inch Size
#Grup produk P108949474
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | Body: White, Release bush: Orange |
|---|---|
| Material (screw) | Brass |
| Assured Pressure Resistance (MPa) | 3 |
| Connector Thread | 10-32UNF |
| Dimensions m (mm) | 13.3 |
| Pipe Connection Diameter | No.10-32 |
| Shape | Universal elbow with hexagon socket |
| Suitable fluid | Air, water |
| Thread Standard | Mounting Part: ANSI/ASME1.20.1 (NPT Thread), JIS B0208 (Unified Fine Thread) Nut Part: JIS B0208 (Unified Fine Thread) |
| Type Of Thread | UNF |
| Working Pressure Range (kPa-Mpa) | -100 - 1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Dimension φD1 means the maximum diameter.Use
An elbow union for a narrow space that tightens a hexagonal hole with a hexagonal wrench.Ulasan Produk
