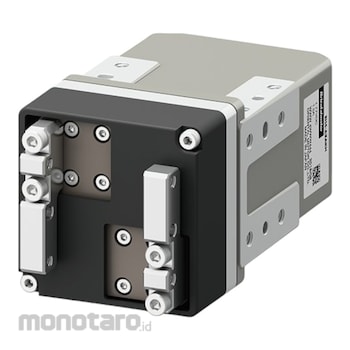

Orientalmotor Electric Gripper
#Grup produk P108925225
Spesifikasi
| Insulation Resistance at 500VDC Megger (MΩ) | 100 or More |
|---|---|
| Ambient Humidity | 85% or Less (Non-Condensing) |
| Actuator Frame Size (mm) | 46 |
| Stroke (mm) | 25 (125 Each Side) |
| Repetitive Positioning Accuracy (mm) | ±0.02 |
| Min. Travel Amount (mm) | 0.02 (0.01 Each Side) |
| Ambient Temperature (°C) | 0 to +40 (Non-Freezing) |
| Backlash (mm) | 0.1(Each Side) |
| Cover | Equipped |
| Dielectric Strength at 50Hz or 60Hz (kVAC) | (Case, Motor and Sensor Windings) 0.5 |
| Finger Type | 2-Finger Type |
| Input Power | DC |
| Insulation class | Class B (130°C) |
| Max. Grip Force (N) | 25 |
| Maximum Acceleration (m/s²) | 20 (10 Each Side) |
| Maximum Speed (mm/s) | 156 (78 Each Side) |
| Operating Atmosphere | Use In An Area Without Corrosive Gases And Dust. The Product Should Not Be Exposed To Water, Oil Or Other Liquids. |
| Permissible Load (N) | 5 |
| Push Speed (mm/s) | 20 (10 Each Side) |
| Static Permissible Moment Load (N m) | (Mp) 1.2; (My) 0.12; (Mr) 0.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The EH Series is a electric gripper based on a rack-and-pinion mechanism equipped with an AZ Series motor. Its delicate grip, like that of a human hand, assists in automation and labor-saving.Requires AZ Series DC Input DriverConnection Cables sold separately
