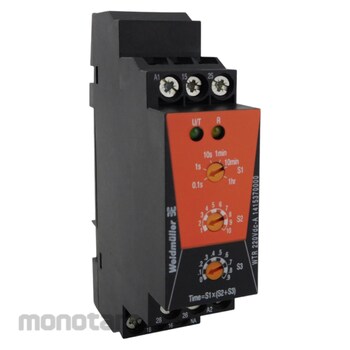

WEIDMULLER WTR Timer
#Grup produk P108925164
Spesifikasi
| Height (mm) | 63 |
|---|---|
| Width (mm) | 22.5 |
| Protection Degree | IP20 |
| Wire Connection Method | Screw connection |
| Length (mm) | 90 |
| Humidity (%RH) | 5-95, no condensation |
| AC Switching Capacity (resistive), Max. (VA) | 2000 |
| Clamping Range Rated Connection (mm²) | 4 |
| Contact Type | 2 CO contact (AgNi 90/10) |
| Continuous Current (A) | 8 |
| DC Switching Capacity Maximum (W) | 240 (resistive) |
| Max. switching voltage, AC (V) | 250 |
| Max. switching voltage, DC (V) | 30 |
| Maximum Clamping Range (mm²) | 6 |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Clamping Range (mm²) | 0.5 |
| Minimum Operating Temperature (°C) | -20 |
| Rail | TS 35 |
| Rated Control Voltage (V) | 110V DC (72-170V DC) |
| Surge Voltage Category | III |
