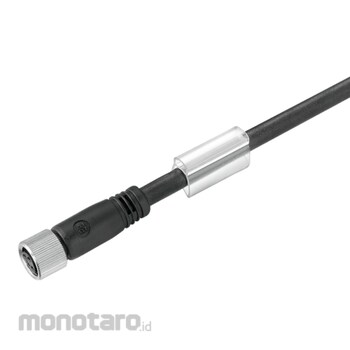

WEIDMULLER Sub-Bus Cord Sets
#Grup produk P108924563
Spesifikasi
| Protection Degree | IP67 |
|---|---|
| Number of Poles | 4 |
| Contact Surface | Gold-plated |
| Rated Current (A) | 4 |
| Sheathing Color | Black |
| Cable Length (m) | 7 |
| Bending Cycles | 250000 |
| Bending radius, min., moving | 12 x cable diameter |
| Bending radius, min., stationary | 5 x cable diameter |
| Coding | none |
| Color Coding | Brown, White, Blue, Black |
| Connection Thread | M8 |
| Core Cross Section (mm²) | 0.34 |
| Moving Temperature Range (°C) | -30 to 90 |
| Plug Left | M8, IP67, female contact, straight, Plastic, unshielded |
| Plug Right | free conductor end |
| Sheath Material | PUR |
| Stationary Temperature Range (°C) | -40 to 90 |
| Temperature Range of Housing (°C) | -25 to +80 |
| Tightening Torque (N m) | M8: 0.5-0.6 |
