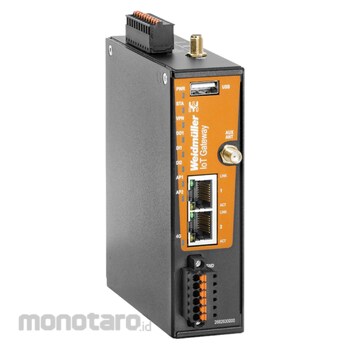

WEIDMULLER IoT-Gateways
#Grup produk P108922848
Spesifikasi
| Height (mm) | 125 |
|---|---|
| Width (mm) | 35 |
| Depth (mm) | 105 |
| Operating Temperature (°C) | -20 to 60 |
| Storage Temperature (°C) | -40 to 85 |
| Type of Mounting | DIN rail |
| Housing main material | Metal |
| Connection Type | 1 removable 6-pin terminal block |
| Current (A) | 0.24 |
| Digital Inputs | 2x, >10 V high , <3.6 V low; max. 30 V DC |
| Digital Outputs | 1x, 19.2 - 28 V high; max. 1 A |
| Maximum Storage Temperature (°C) | 85 |
| Maximum Voltage (V) | 28 |
| Memory RAM | 1GB, DDR3 |
| Minimum Storage Temperature (°C) | -40 |
| Processor | Dual Core ARM Cortex A9, 600 MHz |
| RJ45 Ports | 10/100BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| Speed | Fast Ethernet |
| Voltage Supply (V) | 24 DC |
| Voltage, Min. (V) | 19.2 |
