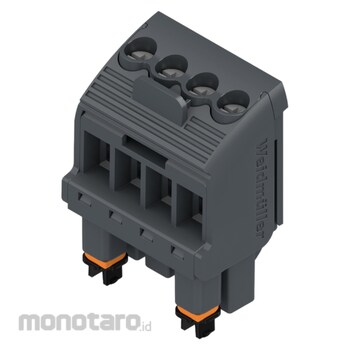

WEIDMULLER Female Plugs - Clamping Yoke Screw Connection For Modular Electronic Housing
#Grup produk P108922307
Spesifikasi
| Height (mm) | 29 |
|---|---|
| Width (mm) | 22.4 |
| Number of Poles | 4 |
| Contact Surface | Tinned |
| Contact Material | CuSn |
| Type of Connection | Field connection |
| Number of Rows | 1 |
| Dimension L1 (inch) | 15 |
| Maximum Clamping Range (mm²) | 3.31 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum with Wire End Ferrule DIN 46228 pt 1 (mm²) | 2.5 |
| Minimum Clamping Range (mm²) | 0.13 |
| Minimum Storage Temperature (°C) | -40 |
| Pitch P (mm) | 5 |
| Rated Current, min. Number of Poles (Tu=20°C) (A) | 10 |
| Rated Voltage for Surge Voltage Class / Pollution Degree III/2 (V) | 320 |
| Rated voltage for surge voltage class / pollution degree II/2 (V) | 400 |
| Rated voltage for surge voltage class / pollution degree III/3 (V) | 250 |
| Wire Connection Cross Section AWG, Max. | AWG 14 |
| Wire Connection Method | Clamping yoke connection |
