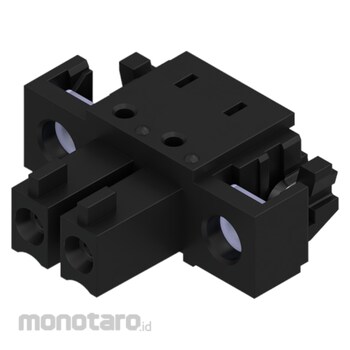

WEIDMULLER Female Headers - THR Solder Connection
#Grup produk P108922121
Spesifikasi
| Color | Black |
|---|---|
| Number of Poles | 2 |
| Contact Surface | Gold-plated |
| Insulating Material | LCP GF |
| Contact Material | Copper alloy |
| Type of Connection | Board connection |
| Color Chart (similar) | RAL 9011 |
| Dimension L1 (inch) | 3.81 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Mounting onto the PCB | THT/THR solder connection |
| Outgoing elbow (°) | 90 |
| Pitch P (mm) | 3.81 |
| Plugging Force/Pole, Max. (N) | 9.5 |
| Pulling Force/Pole, Max. (N) | 6 |
| Rated Current, max. Number of Poles (Tu=20°C) (A) | 15.4 |
| Rated Voltage for Surge Voltage Class / Pollution Degree III/2 (V) | 160 |
| Rated voltage for surge voltage class / pollution degree II/2 (V) | 320 |
| Solder Pin Dimensions (mm) | d = 0.8 |
| Solder Pin Length (l) (mm) | 1.5 |
