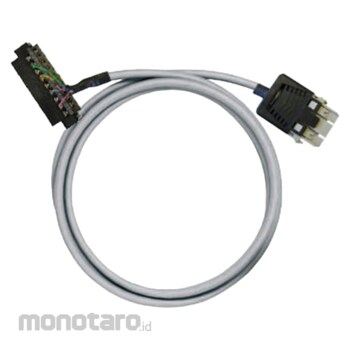

WEIDMULLER Digital RSV Cable
#Grup produk P108921681
Spesifikasi
| Operating Temperature (°C) | -10 to 50 |
|---|---|
| Material | PVC |
| Storage Temperature (°C) | -10 to 60 |
| Rated Voltage (V) | ≤ 250dc ≤ 250ac |
| Cable Length (m) | 1.5 |
| Interface Connector | WEIDMUELLER RSV 24P MALE |
| Cable | Cable LiYY |
| Capacity wire / shield (pF/m) | 300 |
| Capacity wire / wires (pF/m) | 300 |
| Connector PLC side | ROCKWELL COMPACT LOGIX 1769-RTBN 18P |
| High Voltage Test (kV/1s) | 1 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -10 |
| Number of Poles, min. | 24-pole |
| Outer Diameter (mm) | 9.2 ±1 |
| Permissible current strength per path, max. (A) | 1 |
| Resistance (miliΩ/M) | ≤ 80 |
| Suitable For | Digital signals |
| Total Current, Max. (A) | 3 |
| Wire Cross Section (mm²) | 0.25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
