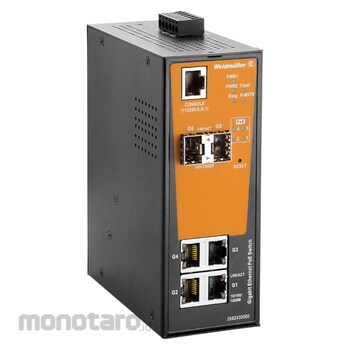

WEIDMULLER Advanced Line Power-over-Ethernet Managed Switches
#Grup produk P108920725
Spesifikasi
| Height (mm) | 145.1 |
|---|---|
| Width (mm) | 54.3 |
| Protection Degree | IP30 |
| Depth (mm) | 108.5 |
| Operating Temperature (°C) | -40 to 75 |
| Connection Type | 1 removable 6-pin terminal block |
| Device Configuration | Webbrowser (HTTP/HTTPS), SNMP v1/v2c/v3, Command Line Interface (Telnet/SSH), Local serial console port (RS-232 via RJ-45 port), Upload of a configuration file via web-interface, TFTP-Server or external backup module |
| Fibre-optic Ports | 100/1000Base SFP Slot |
| Function Reset Button | <5 sec: System reboot and set LAN IP to factory Default, >5 sec: Factory default, Note: behavior of reset button can be configured via web interface |
| Housing main material | Metal |
| Maximum Storage Temperature (°C) | 85 |
| Minimum Storage Temperature (°C) | -40 |
| Number of Ports | 4 x RJ45 10/100/1000BaseT(X) PoE+, 2x 100/1000BaseSFP Slot |
| Operating Time, min. (hour) | 495624 |
| RJ45 Ports | 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| Speed | Gigabit Ethernet |
| Storage Temperature (°C) | -40 to 85 |
| Time Synchronization Management | SNTP server, SNTP client |
| Type of Mounting | DIN rail |
| Voltage Supply (V) | 12/24/48 DC, 2 redundant inputs |
