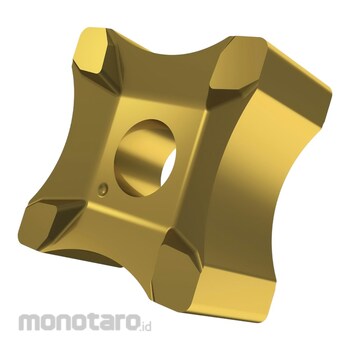

DORMER Insert SNMX Series
#Grup produk P108905285
Spesifikasi
| Hole Diameter (mm) | 5.16 |
|---|---|
| Included Angle | 90 deg |
| Inscribed Circle (mm) | 15.875 |
| Insert Size | 15 |
| Insert Style | SNMX |
| Length (mm) | 15.875 |
| Material | Carbide |
| Material Grade | K, M, P, S |
| Rake | Negative |
| Relief Angle | 0 deg |
| Seat Size | 15 |
| Shape | Squared |
| Thickness (mm) | 8.15 |
| Width (mm) | 15.875 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Double-sided scarfing insert, square with a main cutting edge length of 15.875mm, 8.15mm thick and a working radius of 11mm for tube diameters from 13 to 16mm, 6640 MT-CVD coated WC-Co carbide within ISO-grade ranges P20-P40 and M20-M35 for deburring the outside of steel and stainless-steel tubes and pipes
Use
For use on Stainless Steel, Steel, Cast Iron and Titanium/Super AlloysUlasan Produk
