Phoenix Contact Stand
#Grup produk P108896932
Spesifikasi
| Product Type | Mounting material |
|---|---|
| Width (mm) | 90 |
| Mounting Type | Snap in |
| Flammability Rating According To Ul 94 | V0 |
| Ambient Temperature for Assembly (°C) | -5 to 100 |
| Depth (mm) | 19.2 |
| Diameter Mounting Hole (mm) | 4 |
| Height (mm) | 37.5 |
| Housing Material | Polyamide |
| Housing Series | UCS |
| Housing Type | Universal housings |
| Insulating Material | PA |
| Max. Ip Code To Attain | IP40 |
| Mounting Position | Wall mounting |
| Operating Ambient Temperature (°C) | -40 to 105 (depending on power dissipation) |
| Relative Humidity (storage/transport) (%) | 80 |
| Storage/Transport Ambient Temperature (°C) | -40 to 55 |
| Surface Characteristics | Untreated |
| Ventilation Openings Present | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

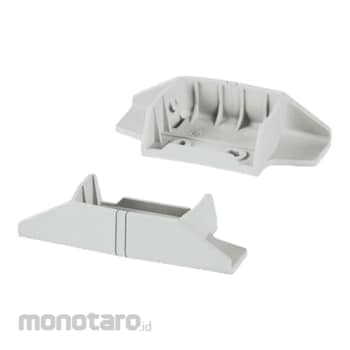

Stand for mounting the UCS housing; height: 47 mm; material: polyamide; color: light gray, similar to RAL 7035; wall mounting option is integrated, snaps into the screw holes of the housing
