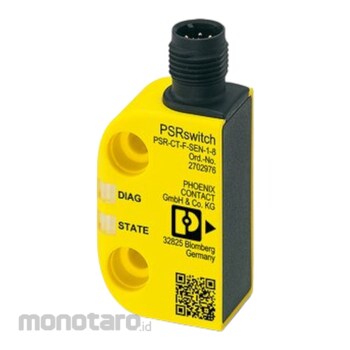

Phoenix Contact Safety Switch Sensor
#Grup produk P108896534
Sebelum PPN:
Rp2.899.900 - Rp3.799.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Product Type | Safety switches |
|---|---|
| Width (mm) | 26.5 |
| Mounting Type | Not flush |
| Height (mm) | 40 |
| Storage/Transport Ambient Temperature (°C) | -40 to 70 |
| Connection Technology | M12 connector |
| Current Consumption (mA) | max. 40 |
| Depth (mm) | 18 |
| Housing Material | PBT |
| Mounting Position | Any |
| Number of Positions | 8 |
| Operating Ambient Temperature (°C) | -25 to 55 |
| Protection Class | III |
| Rated Insulation Voltage (V) | max. 300 |
| Rated Surge Voltage (kV) | max. 1.5 |
| Short Circuit Current (A) | typ. 100 (conditional short-circuit current) |
| Supply Voltage (V) | 24 DC ±15 % (PELV, controlled, residual ripple < 5% ) |
| Switch-on Time (ms) | max. 400 (for the safety outputs) |
| Switching Frequency (Hz) | max. 1 |
| Technology | Transponder |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Proximity safety circuit up to Cat. 4, PL e (EN ISO 13849), SIL 3 (IEC 61508), unicode sensor with RFID coding, model 4 (EN ISO 14119), automatic or manual start, integrated diagnostics, 24 V DC supply, IP69K, M12 connector
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
