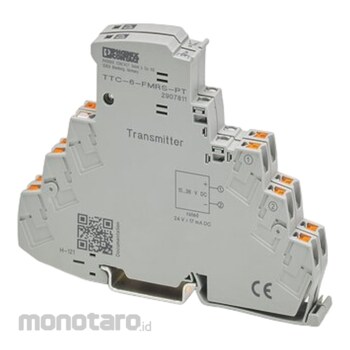

Phoenix Contact Remote Signaling Set
#Grup produk P108896358
Spesifikasi
| Product Type | Remote signaling set |
|---|---|
| Width (mm) | 12.6 +0.1 mm |
| Mounting Type | DIN rail: TH 35 - 7.5mm |
| Flammability Rating According To Ul 94 | V-0 |
| Height (mm) | 105.8 |
| Altitude (m) | ≤ 4000 (amsl) |
| Conductor Cross Section Awg | 24 to 12 |
| Conductor Cross Section Flexible (mm²) | 0.2 to 2.5 |
| Conductor Cross Section Rigid (mm²) | 0.2 to 4 |
| Connection Method | Push-in connection |
| Degree of Protection | IP20 |
| Depth (mm) | 83.5 (incl. DIN rail 7.5mm) |
| Housing Material | PBT |
| Insulating Material | PBT |
| Operating Ambient Temperature (°C) | -40 to 60 |
| Permissible Humidity (Operation) (%) | 5 to 95 |
| Pollution Degree | 2 |
| Product family | TERMITRAB complete |
| Storage/Transport Ambient Temperature (°C) | -40 to 85 |
| Type | DIN rail module, one-piece |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Module set for the optical monitoring and floating remote signaling of adjacent surge protective devices in the TERMITRAB complete or CLIXTRAB product family. Suitable for directly grounded DIN rails.
