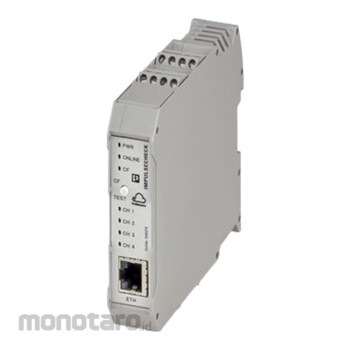

Phoenix Contact Pulse Measuring Device
#Grup produk P108896279
Spesifikasi
| Product Type | Evaluation unit |
|---|---|
| Width (mm) | 22.5 |
| Mounting Type | DIN rail: 35mm |
| Height (mm) | 104.7 |
| Type | DIN rail module, one-piece |
| Storage/Transport Ambient Temperature (°C) | -35 to 85 |
| Altitude (m) | ≤ 2000 (amsl) |
| Degree of Protection | IP20 |
| Depth (mm) | 114.5 |
| Horizontal Pitch | 1.3 Div. |
| Housing Material | Polyamide |
| Interface | Ethernet |
| Operating Current (mA) | ≤ 70 |
| Operating Voltage (V) | 24 DC (-15 % ... +20 % including all tolerances and ripple) |
| Permissible Humidity (Operation) (%) | 30 to 95 (non-condensing) |
| Permissible Humidity (Storage/Transport) (%) | 30 to 95 (non-condensing) |
| Pollution Degree | 2 |
| Product family | IMPULSECHECK |
| Shock (Operation) | 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) |
| Transmission Speed (Mbps) | 10/100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Evaluation unit for the recording of surge currents and transient overvoltages over external sensor cables. Communication of the measured data to PROFICLOUD via Ethernet. The data evaluated in the cloud can be accessed on the device via Modbus/TCP or RESTful web service.
