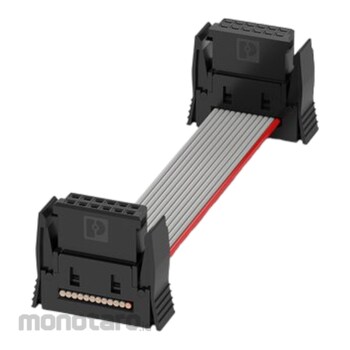

Phoenix Contact Preassembled IDC Female Connector
#Grup produk P108896172
Spesifikasi
| Product Type | Assembled IDC female connector |
|---|---|
| Storage/Transport Ambient Temperature (°C) | -40 to 70 |
| Degree of Pollution | 3 |
| Insertion/Withdrawal Cycles | 500 |
| Cable Length (m) | 0.1 |
| External Sheath Color | Gray |
| AWG Signal Line | 30 |
| Ambient Temperature for Assembly (°C) | -5 to 100 |
| Cable Type | Flat-ribbon conductor [PVC] |
| Conductor Material | Tin-plated Cu litz wires |
| Conductor Structure Signal Line | 7x 0.10mm |
| Contact Resistance (miliΩ) | 10 |
| Insulating Material | LCP |
| Material Wire Insulation | PVC |
| Nominal Current IN (A) | 1.2 IEC 60512-5-2:2002-02 (at 20°C 50-pos.) |
| Operating Ambient Temperature (°C) | -55 to 125 |
| Product family | FR 1,27-Cabling |
| Shielded | no |
| Wire Diameter Including Insulation (mm) | 0.66 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Assembled IDC female connector, rated current: 1.2 A, Cable 1: cable length: 0.1 m, Cable type:Flat-ribbon conductor, Flat-ribbon conductor
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
