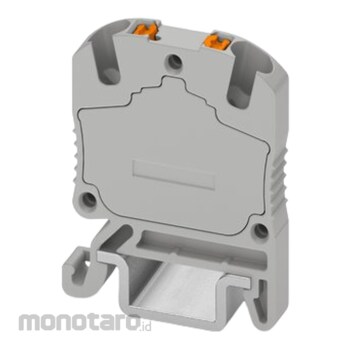

Phoenix Contact Micro Feed-Through Terminal Block
#Grup produk P108895872
Spesifikasi
| Product Type | Miniature terminal block |
|---|---|
| Width (mm) | 4.2 |
| Mounting Type | NS 15 |
| Flammability Rating According To Ul 94 | V0 |
| Ambient Temperature for Assembly (°C) | -5 to 70 |
| Conductor Cross Section Flexible (mm²) | 0.14 to 1.5 |
| Degree of Pollution | 3 |
| Height (mm) | 21 |
| Insulating Material | PA |
| Maximum Power Dissipation for Nominal Condition (W) | 0.56 |
| Operating Ambient Temperature (°C) | -60 to 105 (max. short-term operating temperature RTI Elec.) |
| Overvoltage Category | III |
| Permissible Humidity (Storage/Transport) (%) | 30 to 70 |
| Rated Surge Voltage (kV) | 6 |
| Shock Duration (ms) | 18 |
| Storage/Transport Ambient Temperature (°C) | -25 to 60 (for a short time, not exceeding 24 h, -60 to +70 ) |
| Stripping Length (mm) | 8 to 10 |
| Test Duration per Axis (hour) | 5 |
| Time of Exposure (s) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Micro feed-through terminal block, nom. voltage: 500 V, nominal current: 17.5 A, number of connections: 2, connection method: Push-in connection, cross section: 0.14 mm2 - 1.5 mm2, mounting type: NS 15, color: gray
