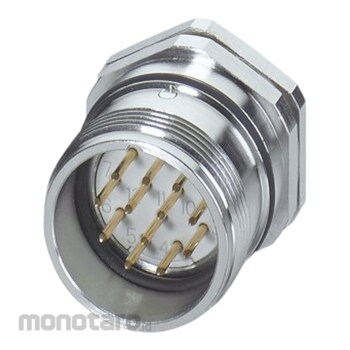

Phoenix Contact Device Connector Front Mounting
#Grup produk P108894998
Spesifikasi
| Product Type | Circular connectors (device side) |
|---|---|
| Overvoltage Category | III |
| Degree of Pollution | 3 |
| Application | Signal |
| Rated Surge Voltage (kV) | 1.5 |
| Coding | N |
| Contact Diameter Power Contacts (mm) | 1 |
| Contact Switching Type | Pin |
| Degree of Protection (plugged in) | IP67 |
| Direction of Rotation | Standard |
| Pg Screw Connection | None |
| Rated Current Power Contacts (A) | 8 |
| Thread Type | M23 |
| Type of Locking | Screw locking mechanism |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Axial seal, Central fixing, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) item no.: 1241225
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
