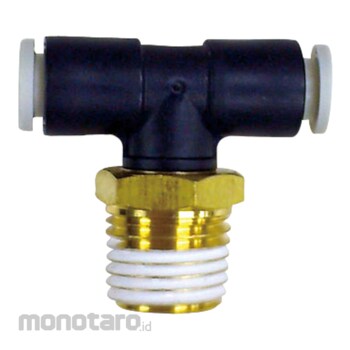

SMC Double-Ended Tee Union KQ2T-X35
#Grup produk P108891779
Kondisi Barang:
Authorized Partner
Spesifikasi
| Color | (Body) Black, (Release Bush) Orange |
|---|---|
| Ambient and Flowing Fluid Temperature (°C) | -5 to 60, for water: 0 to 40 (without freezing) |
| Assured Pressure Resistance (MPa) | 3 (at 23 °C) |
| Connector Thread | 3/8 |
| Seal | (Screw part) With sealant |
| Shape | Double-ended cheese union |
| Suitable Tube Outer Diameter (Φmm) | 8 |
| Suitable fluid | Air, water |
| Thread Standard | Mounting part: JIS B0203 (tapered thread for pipes), JIS B0205 (metric coarse thread) Nut part: JIS B0205 (metric fine thread) |
| Type Of Thread | R |
| Working Pressure Range (kPa-Mpa) | -101 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Use
For branch piping from the screw part in the 90 degree direction on both sides.Dokumentasi Produk
